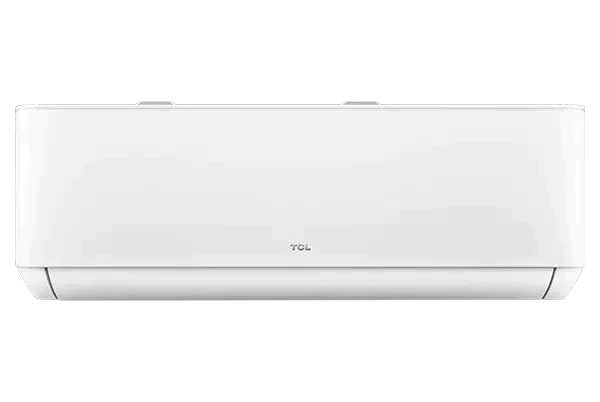

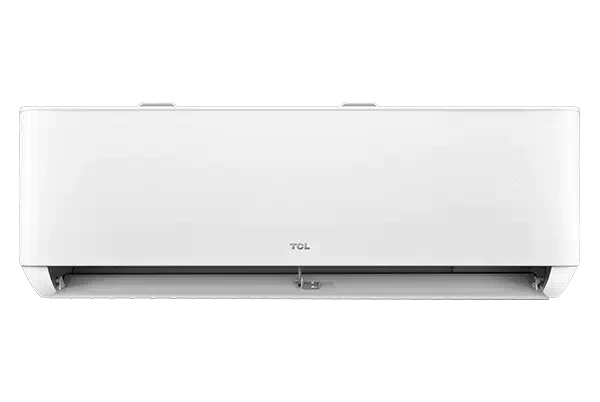

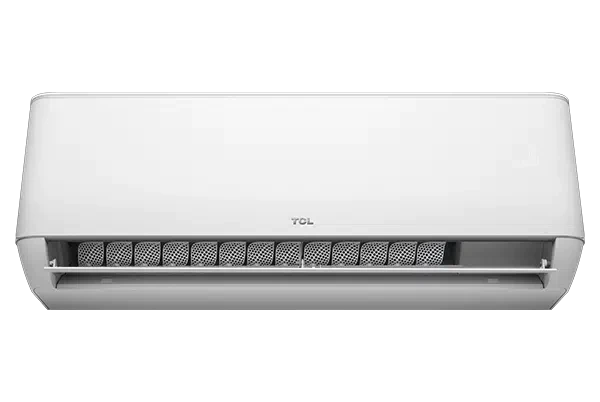

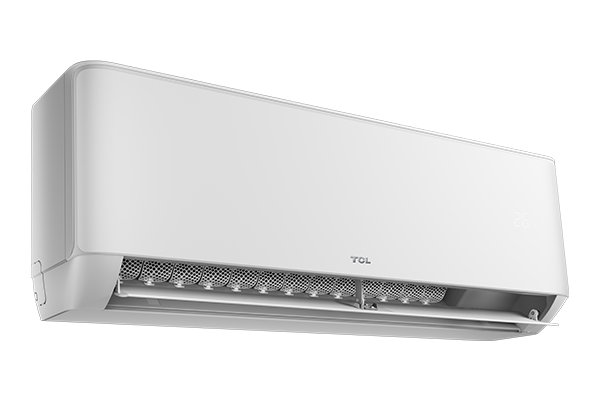

TCL 7.2kW T-Pro Inverter Split System TAC-24CHSD/TPH11IT


· 7.2KW Cooling Capacity
· Gentle Breeze Mode
· Smart Inverter
· Smart Airflow
· Air Purification
· I Feel Function
· Works With Google Assistant & Alexa
· Auto-Clean / Clean Reminder
· Turbo Function
· 24Hr Timer
· Easy Clean Design
Features
With whisper-like operation your heating and cooling needs can be taken care of quietly and confidently in the background. The TAC-09CHSD/TPG11IT model offers quick and efficient temperature control with plenty of airflow options.

Gentle Breeze Technology
With up to 1,422* micro-holes perfectly spaced across the S-Shaped airflow vanes, air is more gently and widely dispersed throughout the room. Avoid harsh, direct cold drafts – and unlock superior airflow comfort.
*Based on TAC-24CHSD/TPG11IT model.
Smart Air Flow

Clever Inverter
Unique TCL inverter technology ensures perfect performance with energy efficiency. Enjoy a split system that is faster and more proactive in helping you reach your comfort zone.
Breathe Fresh Filtered Air
Keep your air clean and dust-free with the top mounted integrated filter. Efficiently removes dirt, pollen, and bacteria from the airflow so you can breathe fresh.
“I Feel” Mode
With a built-in thermometer, the remote control senses the temperature around it and communicates with the unit to intelligently maintain your perfect temperature and keep you comfortable.
Smart Connectivity
Adjust the settings of your air conditioner using the handheld remote, or wirelessly via the TCL Home App, Amazon Alexa, or Google Assistant. Now you can take control of your comfort 24/7, even remotely.
*Wi-Fi network, Google/Amazon account and compatible device required (sold separately). Data usage and subscription charges may apply. Google is a trademark of Google LLC. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc or it’s affiliates.
Rapid Action Temperature Control
Get comfortable quickly with powerfully fast heating or cooling in Turbo Start mode. No more waiting before getting to relax in your ideal temperature.
Cleans Itself and Cleans the Air
The 4-Step Auto Clean Mode uses water molecules in the air to help carry away accumulated dirt, bacteria, and impurities. Plus, you get friendly reminders when it is time to clean your filter. Safeguard air quality without the added maintenance.
Sleep Mode
Sleep soundly even on the warmest or coolest of nights. Once activated, Sleep Mode gently maintains room temperature whilst ensuring quiet operation throughout the night.
Easy-Clean Design
Designed to make manual cleaning as easy and effortless as possible; no more struggles. Key components are simple to take apart, wash, and then reassemble.
60°C Cooling
There’s nothing worse than an air conditioner giving up on the days when you need it most. TCL will help you keep your cool with the inclusion of an air-cooled e-box in every split system unit. Cooling is continuous in up to 60°C outside temperature, and operates at 100% cooling capacity in up to 50°C, so you never need to sweat it out!
Design Features
Featuring modern and clean design aesthetics, a TCL air conditioner will compliment any décor all whilst keeping you in comfort.

SPECIFICATIONS
GENERAL INFORMATION
Indoor/Outdoor Unit
TAC-24CHSD/TPH11IT
Operation Type
Reverse Cycle
KEY FEATURES
Capacity
7.2KW Cooling Capacity / 7.2KW Heating Capacity
Works with Google Assistant / Amazon Alexa / TCL Home App
Yes
Gentle Breeze Mode
Yes
24Hr Timer
Yes
Smart Airflow
Yes
Eco Mode
Yes
Air Purification
Yes
5-fan speed
Yes
Inverter Technology
Yes
LED Display
On/Off
I Feel Function
Yes
Easy Clean Design
Yes
Turbo Function
Yes
Auto-Clean / Clean Reminder
Yes
Sleep Mode
Yes
NOISE (SOUND POWER LEVEL)
Indoor Unit – dB (A)
54
Outdoor Unit – dB (A)
63
RATED VALUES
Cooling Capacity (KW)
7.2 (2.0~8.0)
Heating Capacity (KW)
7.2 (2.0~8.5)
Rated Input-Cooling (KW)
1.9
Rated Input-Heating (KW)
1.7
Moisture Removal (Litre/Hour)
2.6
AEER
3.76
ACOP
4.2
Energy Star Rating for Cooling (Hot & Humid)
3.5
Energy Star Rating for Cooling (Mixed)
3.5
Energy Star Rating for Cooling (Cold)
3.5
Energy Star Rating for Heating (Hot & Humid)
3
Energy Star Rating for Heating (Mixed)
2.5
Energy Star Rating for Heating (Cold)
2
ELECTRICAL DATA
Power Supply
220-240V~50Hz
Rated Current Cooling (A)
8.7
Rated Current Heating (A)
7.9
Max Current (Cooling / Heating) (A)
12/11.5
Max Input (Cooling / Heating) (W)
2600/2500
Standby Power (W)
5
Outdoor Operating Temperature Range (°C)
-15°C~52°C
Indoor Operating Temperature Range (°C)
16°C~31°C
Breaker Size (A)
20
FAN SYSTEM
Air Circulation (L/S) Cooling
333.33
Air Circulation (L/S) Heating
333.33
REFRIGERATING SYSTEM
REFRIGERATING SYSTEM
Compressor Type
Inverter
Refrigerant (type/gram)
R32 / 1125g
PIPING
Liquid Pipe (mm)
Ø 6.35 (1/4″)
Gas Pipe (mm)
Ø 12.7 (1/2″)
Maximum Piping Length (m)
25
Max Height Difference (m)
10
DIMENSIONS / WEIGHT
Product Dimensions-Indoor (W x D x H)
1097 x 332 x 222mm
Product Dimensions-Outdoor (W x D x H)
920 x 380 x 699mm
Net Weight-Indoor (kg)
14
Net Weight-Outdoor (kg)
42
Carton Dimensions-Indoor (W x D x H)
1165 x 405 x 295mm
Carton Dimensions-Outdoor (W x D x H)
960 x 400 x 732mm
Gross Weight with Packaging-Indoor (kg)
17
Gross Weight with Packaging-Outdoor without pipe (kg)
45
