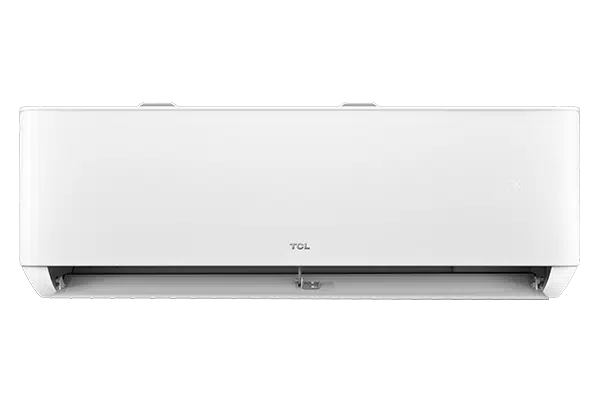

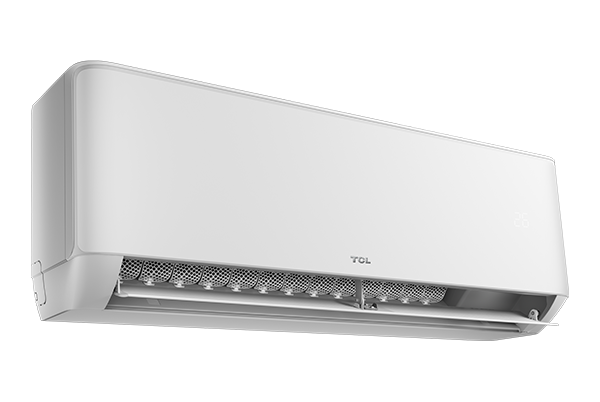

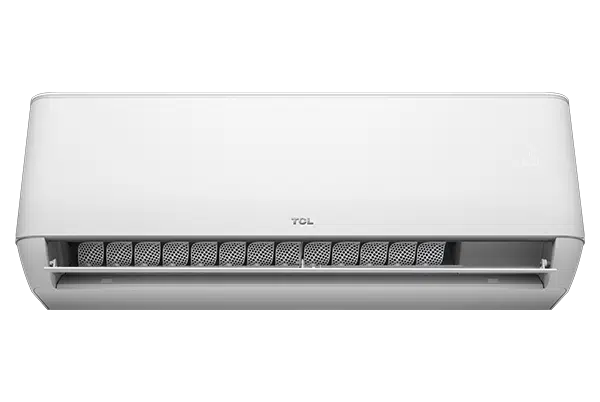

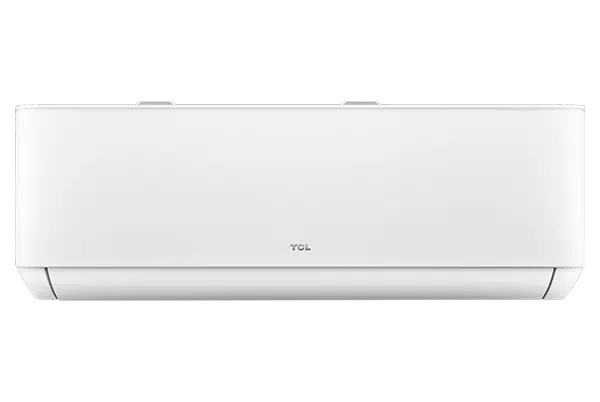

TCL 3.5kW T-Pro Inverter Split System TAC-12CHSD/TPH11IT

TCL 3.5kW T-Pro Inverter Split System TAC-12CHSD/TPH11IT
With innovative Hi-Wall Split System design, the latest TCL split system is designed to be quiet, reach the desired temperature quickly and maintain a stable temperature.
Highlight features:
· 3.5KW Cooling Capacity· Gentle Breeze Mode· Built-in WIFI – Works With Google Assistant & Alexa· Smart Airflow· Air Purification· I Feel Function· Auto-Clean / Clean Reminder· Turbo Function· 24Hr Timer· Easy Clean Design

SPECIFICATIONS

GENERAL INFORMATION
Indoor/Outdoor Unit
TAC-12CHSD/TPH11IT
Operation Type
Reverse Cycle
KEY FEATURES
Capacity
3.5KW Cooling Capacity / 4.5KW Heating Capacity
Works with Google Assistant / Amazon Alexa / TCL Home App
Yes
Gentle Breeze Mode
Yes
24Hr Timer
Yes
Smart Airflow
Yes
Eco Mode
Yes
Air Purification
Yes
5-fan speed
Yes
Inverter Technology
Yes
LED Display – On/Off
Yes
I Feel Function
Yes
Easy Clean Design
Yes
Turbo Function
Yes
Auto-Clean / Clean Reminder
Yes
Sleep Mode
Yes
WiFi Connectivity
Yes
NOISE (SOUND POWER LEVEL)
Indoor Unit – dB (A)
48
Outdoor Unit – dB (A)
60
RATED VALUES
Cooling Capacity (KW)
3.5 (1.0~4.0)
Heating Capacity (KW)
4.5 (1.0~4.6)
Rated Input-Cooling (KW)
0.8
Rated Input-Heating (KW)
1.07
Moisture Removal (Litre/Hour)
1.1
AEER
4.3
ACOP
4.15
Energy Star Rating for Cooling (Hot & Humid)
5.5
Energy Star Rating for Cooling (Mixed)
4.5
Energy Star Rating for Cooling (Cold)
4.5
Energy Star Rating for Heating (Hot & Humid)
3
Energy Star Rating for Heating (Mixed)
2.5
Energy Star Rating for Heating (Cold)
2
ELECTRICAL DATA
Power Supply
220-240V~50Hz
Rated Current Cooling (A)
3.6
Rated Current Heating (A)
4.6
Max Current (Cooling / Heating) (A)
7.8/8.2
Max Input (Cooling / Heating) (W)
1400/1990
Standby Power (W)
4
Outdoor Operating Temperature Range (°C)
-15°C~52°C
Indoor Operating Temperature Range (°C)
16°C~31°C
Breaker Size (A)
16
FAN SYSTEM
Air Circulation (L/S) Cooling
161.11
Air Circulation (L/S) Heating
172.22
REFRIGERATING SYSTEM
Compressor Type
Inverter
Refrigerant (type/gram)
R32 / 810g
PIPING
Liquid Pipe (mm)
Ø 6.35 (1/4″)
Gas Pipe (mm)
Ø 9.52 (3/8″)
Maximum Piping Length (m)
15
Max Height Difference (m)
10
DIMENSIONS / WEIGHT
Product Dimensions-Indoor (W x D x H)
820 x 306 x 195mm
Product Dimensions-Outdoor (W x D x H)
795 x 305 x 549mm
Net Weight-Indoor (kg)
10
Net Weight-Outdoor (kg)
26
Carton Dimensions-Indoor (W x D x H)
890 x 380 x 265mm
Carton Dimensions-Outdoor (W x D x H)
835 x 340 x 585mm
Gross Weight with Packaging-Indoor (kg)
12
Gross Weight with Packaging-Outdoor without pipe (kg)
28
