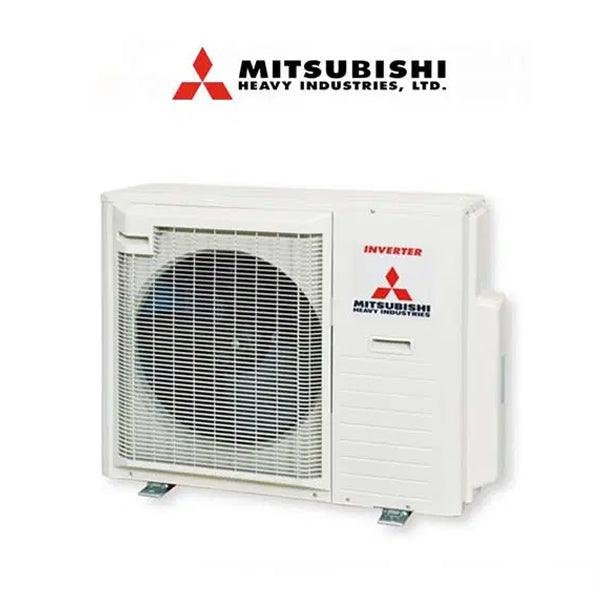

Mitsubishi Multi Split System SCM71ZS-W 7.1kW Outdoor Unit Only
Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Shop with Confidence
Brand new Australian StockNo Factory SecondsFull Australian Manufacturer’s WarrantySecure Online Payments
Description
7.1kW Cooling | 8.6kW HeatingMitsubishi Heavy Industries SCM71ZS-W 7.1kW Multi Split System Outdoor Unit Only | R32
For conditioning 2 to 4 Rooms.Maximum capacity of indoor units allowed: 12.5kW
Specifications
Outdoor
SCM71ZS-W
Power source (Outdoor)
1 Phase 240V 50Hz
*Operation data
Nominal Capacity (Range)
Cooling T1
kW
7.1 (1.8~8.8)
Heating H1
8.6 (1.1~9.4)
Power consumption
Cooling T1
1.42
Heating H1
1.75
Running current
Cooling T1
A
6.0
Heating H1
7.4
Inrush current, maximum current
5, 20
EER
Cooling T1
5.00
COP
Heating H1
4.91
Sound power level (JIS C9612)
Cooling T1
dB(A)
63
Heating H1
67
Sound pressure level (JIS C9612)
Cooling T1
50
Heating H1
54
Silent mode
Cooling T1
45
Heating H1
50
External dimensions (HxWxD)
mm
750×880(+73)x340
Net weight
kg
61
Refrigerant (R32)
Quantity
2.55
Pre charged to pipe length
m
30
Installation data
Refrigerant piping
Liquid line
mm
Ø6.35 x 4
Gas line
Ø9.52 x 4
Connection method
Flare connection
Maximum pipe length to one indoor unit
m
25
Total pipe length to all indoor units
70
Max vertical height diff. between O.U. and I.U.
20 ( O.U. above I.U.) / 20 ( O.U. below I.U. )
Indoor Unit Combination
SRK-ZSA-W
kW
2.0, 2.5, 3.5, 5.0
SRK-ZSXA-W
2.0, 2.5, 3.5, 5.0, 6.0
SRK-ZRA-W
7.1
SRF-ZS(X)-W
2.5, 3.5, 5.0
SRR-ZS-W
2.5, 3.5, 5.0, 6.0
FDTC-VH
2.5, 3.5, 5.0, 6.0
FDUM-VH
5.0
Indoor Unit Connection
2 to 4 Units
Indoor Connection Capacity
kW
7.0 to 12.5
Outdoor air temperature (upper, lower limits)
Cooling
°C
-15 to 46
Heating
-15 to 24
