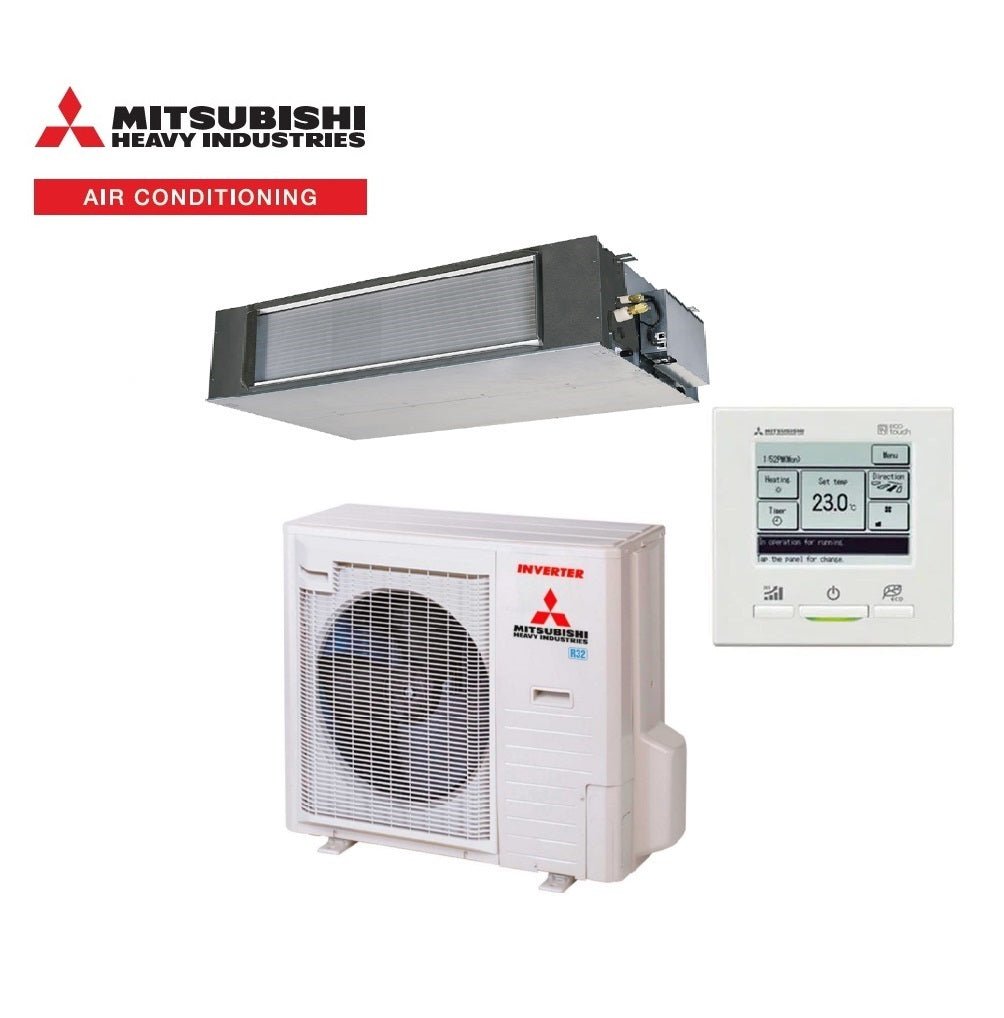

Mitsubishi Heavy Industries Slimline FDU100AVNAWVH 10kW Ducted System 1 Phase | RC-EXZ3A Wired Controller Included
Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Shop with Confidence
Brand new Australian Stock
No Factory Seconds
Full Australian Manufacturer’s Warranty
Secure Online Payments
Specifications
CAPACITY
10.0 KW
Set
FDU100AVNAWVH
Indoor
FDU100VH
Outdoor
FDCA100VNA-W
Controller
RC-EXZ3A included
Power Source (Outdoor Unit)
1 Phase 240V 50Hz
*Operation Data
Nominal Capacity Range
Cooling T1
kW
10.0 (4.0-11.2)
Heating H1
11.2 (4.0-12.5)
Heating H2
10.00
Ê Power Consumption
Cooling T1
2.99
Heating H1
2.66
Max Power Consumption
6.40
Ê Running Current
Cooling T1
A
14.3
Heating H1
12.7
Inrush Current, Maximum Current
5, 26
EER
Cooling T1
3.35
COP
Heating H1
4.21
Sound Power Level (JS C9612)
Outdoor
dB(A)
70
Sound Pressure Level (JS C9612)
Indoor
P-Hi:44 Hi:38 Me:36 Lo:30
Outdoor
55
Ê External Dimensions (HXWXD)
Indoor
mm
280_1370_740
Outdoor
845x970x370
Ê Net Weight
Indoor
Kg
54
Outdoor
77
Supply Air Connection
mm
170_1200
Return Air Connection
235_1280
External Static Pressure (Max)
Pa
200
Airflow
Indoor (Cooling)
l/s
P-Hi: 600 Hi:467 Me:417 Lo:317
Indoor (Heating)
Ê Refrigerant (Type, Amount, Pre-charge Length)
Quantity
kg
(R32) 3.3
Pre Charged To Pipe Length
m
30
Installation Data
Ê Refrigerant Piping
Liquid Line
mm
ø9.52
Gas Line
ø15.88
Connection Method
Flare Connection
Maximum Pipe Length (One Way)
m
50
Ê Max vertical height diff. between O.U. and I.U.
Ê 50 ( O.U. above I.U. ) / 15 ( O.U. below I.U. )
Controller
RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2
Motion Sensor (Optional)
LB-KIT2
Demand response (AS4755)
Yes
Outdoor air temperature (upper, lower limits)
Cooling
oC
-15 to 50
Heating
-20 to 20
Package Description
INCREASED ENERGY EFFICIENCY
SPLITTABLE INDOOR UNIT
QUIET OPERATION
BUILT-IN DRAIN PUMP
