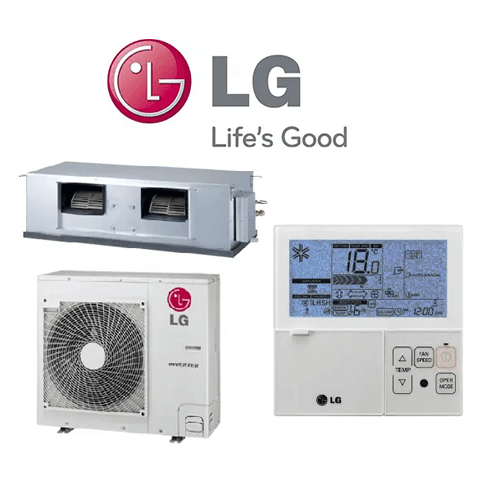

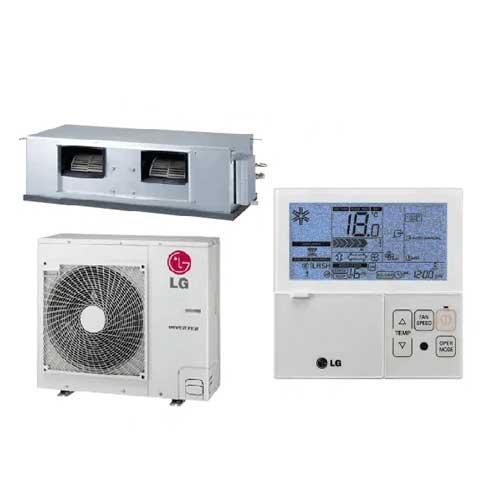

LG B36AWY-7G6 10.5kW High Static Ducted System 1 Phase | Backlit Controller

10.5 kW Cooling 13.0 kW Heating Includes standard wall controller PREMTB001Shop with Confidence Brand new Australian Stock No Factory Seconds Full Australian Manufacturer’s Warranty Secure Online PaymentsDescription8.80 kW Cooling 9.20 kW Heating Wi-Fi & 8 Zone CompatibleSpecifications SYSTEM B30AWY-7G6 INDOOR B30AWYN7G6 OUTDOOR B30AWYU4G6 Capacity Cooling Min / Rated / Max kW 2.5 / 8.8 / 9.6 Heating Min / Rated / Max kW 2.7 / 9.4 / 11.1 Power Input Cooling Rated kW 2.58 Heating Rated kW 2.32 Running Current Cooling / Heating Rated A 11.4 / 10.3 Power Supply V / À / Hz 220 240 / 1 / 50 E.E.R. 3.41 C.O.P. 4.05 Airflow Rate High / Medium / Low L / s 533 / 433 / 333 Sound Pressure Cooling High / Medium / Low dBA 41 / 40 / 39 Heating High / Medium / Low dBA _ / / Sound Power Cooling Max dBA _ Dehumidification Rate L / h _ Dimensions Indoor W x H x D mm 1,320 x 400 x 534 Outdoor mm 950 x 834 x 330 Weight Indoor kg 48.0 Outdoor kg 58.5 Supply Air Spigot W x H mm 840 x 287 Return Air Spigot W x H mm 1,172 x 317 Compressor Type Inverter Twin Rotary Sound Pressure Cooling Rated dBA 51 Heating Rated dBA 52 Sound Power Cooling Max dBA 64 Refrigerant Type R410A Precharged Length g 10 Operation Range (Outdoor) Cooling Min Max C DB -15 to 48 Heating Min Max C WB -18 to 18 Circuit Breaker A 25 Piping Length Total Max m 30 Piping Elevation Difference IDU-ODU Max m 30 Piping Connection Liquid mm À9.52 Gas mm À15.88 Drain O.D. / I.D. mm À32.0 / 25.0
