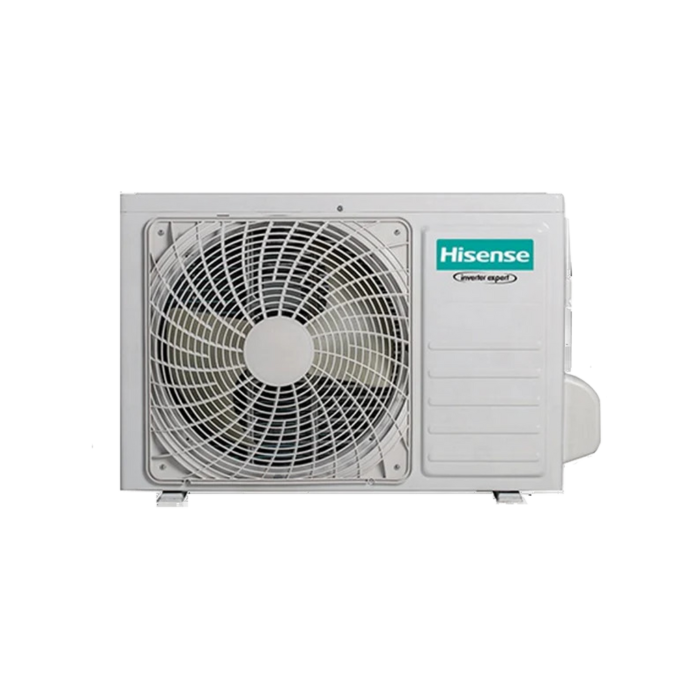

Hisense C7.1kW H8.0kW Multi Head Outdoor Unit (3 Indoor Connection) AMW3-71U4RJC

Anti-Corrosive Golden Fin – The unique anti-corrosive golden fin can withstand the salty air, rain and other corrosive elements. According to the salt spray test, the level of corrosion protection is significantly 3-4 times better than normal fin. It also have better hydrophilic, higher heat exchanging efficiency and more attractive than normal fin. Intelligent Defrost – when there are frost in outdoor unit in winter, the sensor will check the temperature difference from the ambient and heat exchanger, when the differences get bigger, normally 8-degree differences and with 2-minutes, the product comes into defrost mode, four-way valve will change to cooling mode, while indoor fan will enter anti cold flow mode, compressor high frequency operation, with around 6-12 minutes. When the coil sensor goes up, quit the defrost mode, enter heating mode.PCB With Insect Prevention – The structure of PCB prevents insect from entering
Refrigerant Leakage Detection – The outdoor unit will send an error code to indoor when the refrigerant leakage ratio reaches 20%. The error code will display in indoor screen for high wall unit or display in wired controller for duct unit. The control system will stop running to ensure safe operation of the air conditioner.
Technical Specifications
Type:
Multi-Head Outdoor
Cooling Capacity:
7.1kW
Heating Capacity:
8.0kW
Noise Level:
63 db(A)
Filtration System:
Hi-Nano Ion Air Purification
Outdoor Unit Model No.:
AMW3-71U4RJC
Max Connected Indoor Unit:
3
Piping Connections Max Length(m):
50
Piping Connections Max Height(m):
15
Outdoor Unit Width (mm):
860
Outdoor Unit Height (mm):
670
Outdoor Unit Depth (mm):
310
Year:
2023
Energy Efficiency Ratio (EER):
3.65/3.57
Coefficient of Performance (COP):
3.88/3.81
Manufacturer’s Warranty:
5 Years
