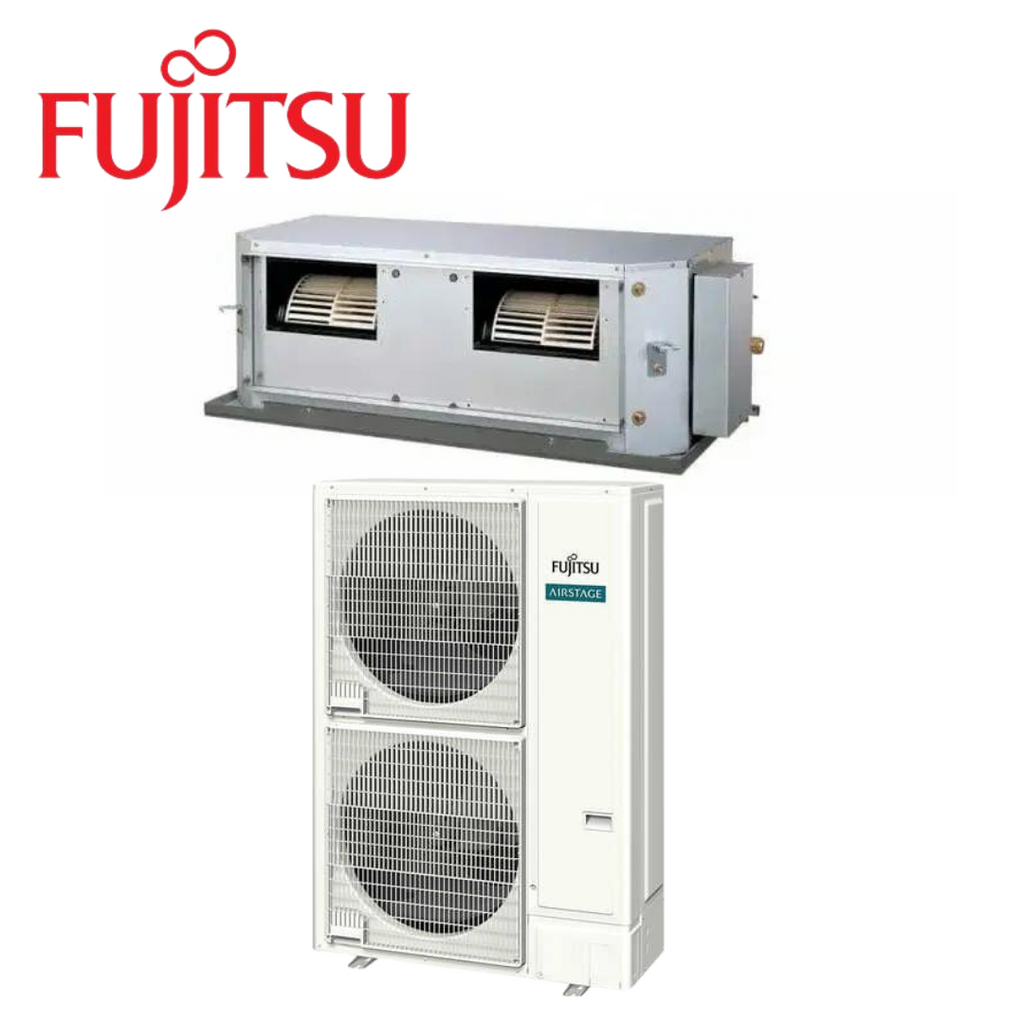

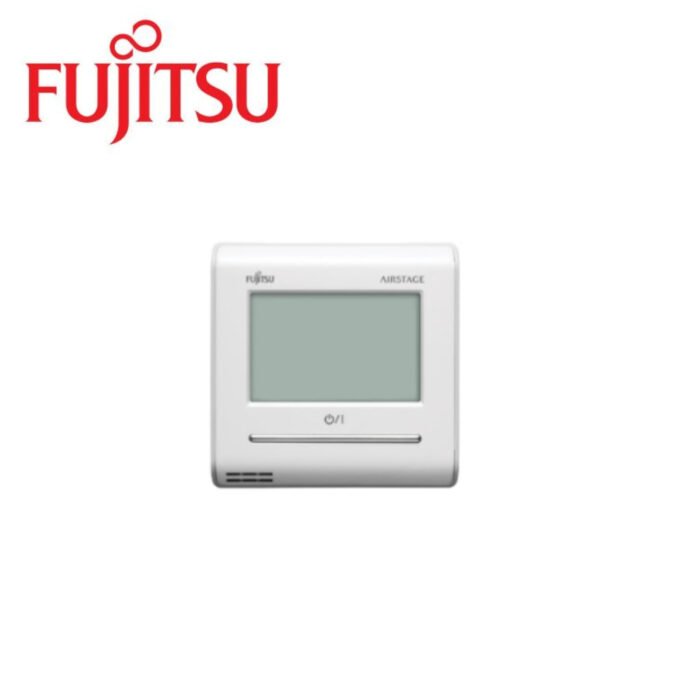

FUJITSU ARTG65LHTA 18.0kW Inverter Ducted Air Conditioner System R410A 3 Phase | Includes UTY-RVNYN Controller

Description
18.0kW Cooling  | 20.0kW HeatingFUJITSU SET-ARTG65LHTA 18.0kW Inverter Ducted Air Conditioner System 3 PhaseIncludes Indoor ARTG65LHTA | Outdoor AOTG65LRLALightweight  | Compact Indoor Unit | SeparableWired Back lit Controller – UTY-RVNYN
Specification
Operation Type
Reverse Cycle
Power SourceV/Ph/Hz
415 / 3 / 50
Cooling CapacitykW (Rated (Min – Max))
18.00 (8.4 – 20.0)
Heating CapacitykW (Rated (Min – Max))
20.00 (7.2 – 22.0)
EER CoolingkW/kW
3.09
COP HeatingkW/kW
3.77
Star Rating Cooling(0-10) (Hot / Average / Cold)
2.5 / 2.0 / 2.0
Star Rating Heating(0-10) (Hot / Average / Cold)
3.0 / 2.5 / 2.0
Total Cooling Seasonal Performance Factor ResidentialkW (Hot / Average / Cold)
4.121 / 3.816 / 3.936
Heating Seasonal Performance Factor ResidentialkW (Hot / Average / Cold)
4.609 / 4.167 / 3.819
Total Cooling Seasonal Performance Factor CommercialkW (Hot / Average / Cold)
4.413 / 4.473 / 4.764
Heating Seasonal Performance Factor CommercialkW (Hot / Average / Cold)
4.614 / 4.348 / 4.036
Moisture Removall/hr
4.5
Indoor Sound Pressure CoolingdBA (High / Quiet)
45 / 36
Indoor Sound Pressure HeatingdBA (High / Quiet)
45 / 36
Outdoor Sound PressuredBA (Cooling / Heating)
51 / 53
Outdoor Sound PowerdBA
70
Static Pressure RangePA (Min to Max)
60 to 200
Air Circulation (Indoor – High Fan) Coolingl/sec
1139
Air Circulation (Indoor – High Fan) Heatingl/sec
1139
Indoor Unit Dimensionsmm (Height x Width x Depth)
360 x 1400 x 850
Indoor Unit Weightkg
69.00
Outdoor Unit Dimensionsmm (Height x Width x Depth)
1428 x 1080 x 480
Outdoor Unit Weightkg
163.00
Piping Connectsmm Ø (Liquid / Gas)
12.7 / 25.4
Pipe Lengthm (Max (Precharged))
75 (30)
Max Height Differencem
30
Operation Range Cooling°CDB (Min to Max)
-15 to 46
Operation Range Heating°CDB (Min to Max)
-15 to 24
Refrigerant Type
R410A
Refrigerant Amountg
5,600
